MOTION COCKPIT - QUBIC

QS-S25 SPIDER

The QS-S25 is an advanced motion cockpit, designed for the most demanding racers who are looking for a professional simulation experience on high top level. The motion system based on patent pending linear actuator’s technology allows a much stronger sensation range such as under steer, loss of grip or overloading during brake clearly blurring the difference between reality and virtual environment. Due to the combination of dedicated accessories and the QubicManager software, the 6DoF motion platform provides drivers with an extreme experience like in a real race or during the ultimate flights.

£POA

QUBIC SYSTEM - WORLD PREMIER

The QS-S25 called Spider consist of 6 degrees of freedom (surge, sway, heave roll, pitch and yaw) which determined a position and movement of a car. The combination of the high precision technology of the motion system with QubicManager functionalities guarantees perfectly reflect the situations in the selected game. Further the impressive dynamics and high performance of QS-S25 motion system means that the racing simulation has never been at such a top high.

The original machine’s design based on modular and reconfigurable sets of actuators can be used in various racing or flight applications. Compact design and small footprint fits to the medium size gaming rooms, VR centers, and training facilities for professional drivers.

The platform is compatible with the selected Virtual Reality headsets on the market, which makes QS-S25 open to a new possibility in combining technologies. QubicManager uses advanced mathematic formulas to calculate necessary compensation and applies it to the VR headset at runtime. It eliminates platform motions from the VR tracking system, causing your experiences to be more immersive and authentic.

Check also the wide range of additional mounting brackets and add-ons for building full motion racing and flight simulators.

*Price POA does not include tax (VAT), customs duty and transportation costs. Price refers to QS-S25 set of motion platform only. Price does not contain peripherals like: PC computer, manipulators, game or simulation software, add-ons, accessories and mounting brackets. The information contained in this web page does not constitute an offer in the meaning of the Civil Code of 23rd April 1964.

QS-S25 MOTION SYSTEM (6DOF)

QS-S25 COCKPIT SET

QS-S25 – MOUNTING BRACKET 3x MONITORS

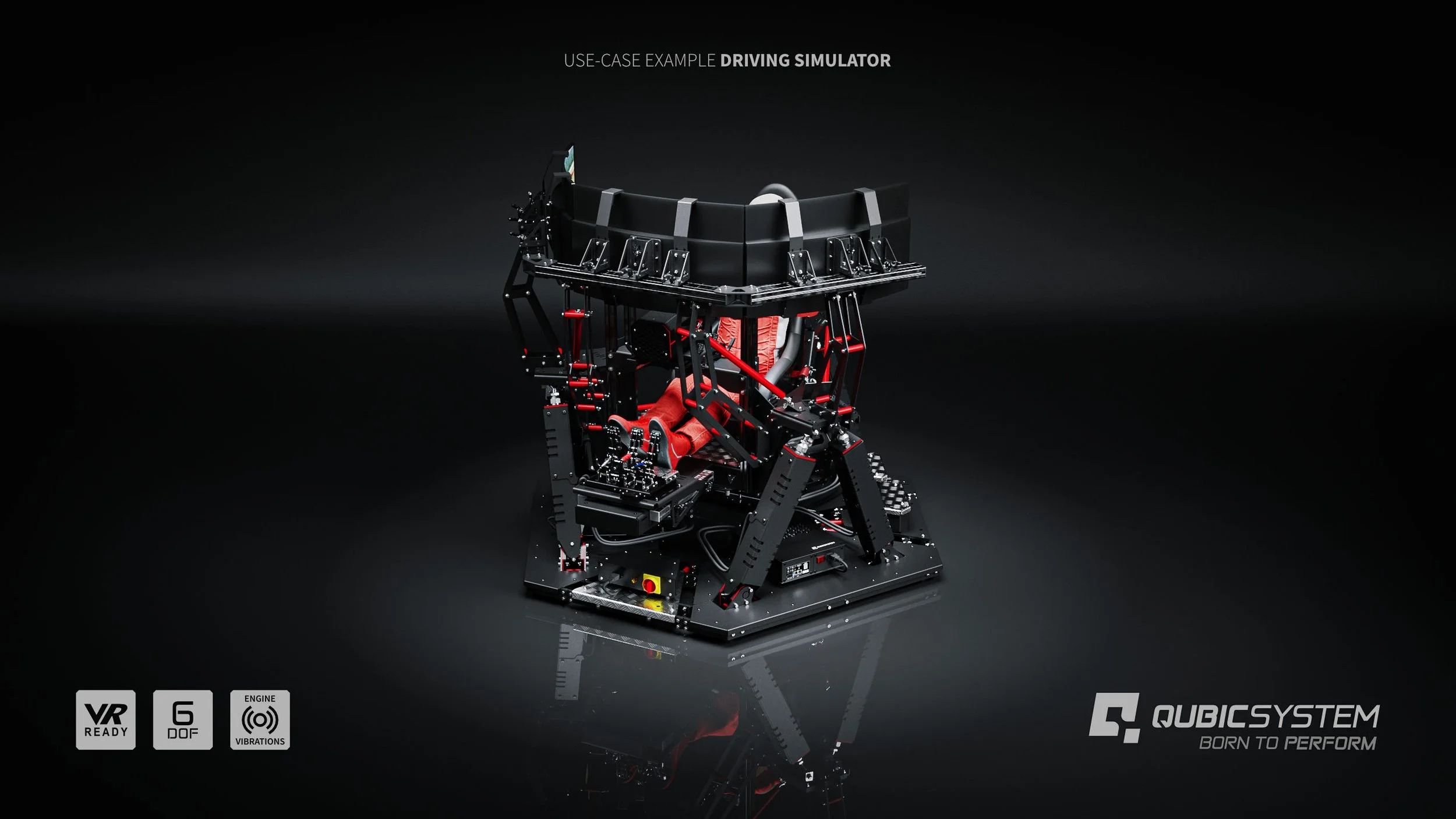

USE-CASE EXAMPLE

  • Used by professional race car drivers and pilots around the world

    Proudly made in EU: Engineered, Designed and Manufactured in Poland

    Top quality ecosystem for personal and commercial applications

    Supported by dedicated software QubicManager

    VR HeadWay technology support (VR sickness compensation)

    Over 80+ integrated and supported racing and flight games

    Compatible with professional simulation applications – Motion SDK (FSMI or FSDI) for software developers

    Easy for transport: assembly on site from the main components

    Easy to adapt to 3rd party cockpits

  • The QS-S25 is transported in a specially adapted transport box.

    Box dimensions: 190 cm x 190 cm x 128 cm/ 74,8 in x 74,8 in x 50,4 in

    WHAT’S IN THE BOX

    QS-S25 Motion Platform

    ForceSeatPM Platform Manager software download

    USB and power cables

    Nuts and Bolts required for assembly

    Product Manual

  • GENERAL SPECIFICATION

    Architecture: 6DOF

    Payload (heavy duty mode) 250 kg | 551 lb

    Payload (performance mode) 150 kg | 330 lb

    Product weight: 350 kg | 772 lb

    Total width: 1603 mm | 63 in

    Total length: 1603 mm | 63 in

    Min height: 769 mm | 30 in

    POWER REQUIREMENTS

    Power supply requirements: 230V 50-60HZ

    Average power (Watts): 199

    Average power (VA): 1300

    Peak Current (A): 11

    Power supply requirements: 120V 50-60HZ

    Average power (Watts): 238

    Average power (VA): 900

    Peak Current (A): 13

  • Even most advanced hardware is nothing without good software. QubicManager powered by Motion Systems company is professional and specialized software for the platform and is click and play compatible with all major racing and flight titles on PC and constantly updated to support new applications as they are released. Gives user possibilities of motion adjustment, motion post-processing, extensive diagnostic or easy and fast use of predefined profiles.

    Over 80 integrated and supported racing and flight games.
